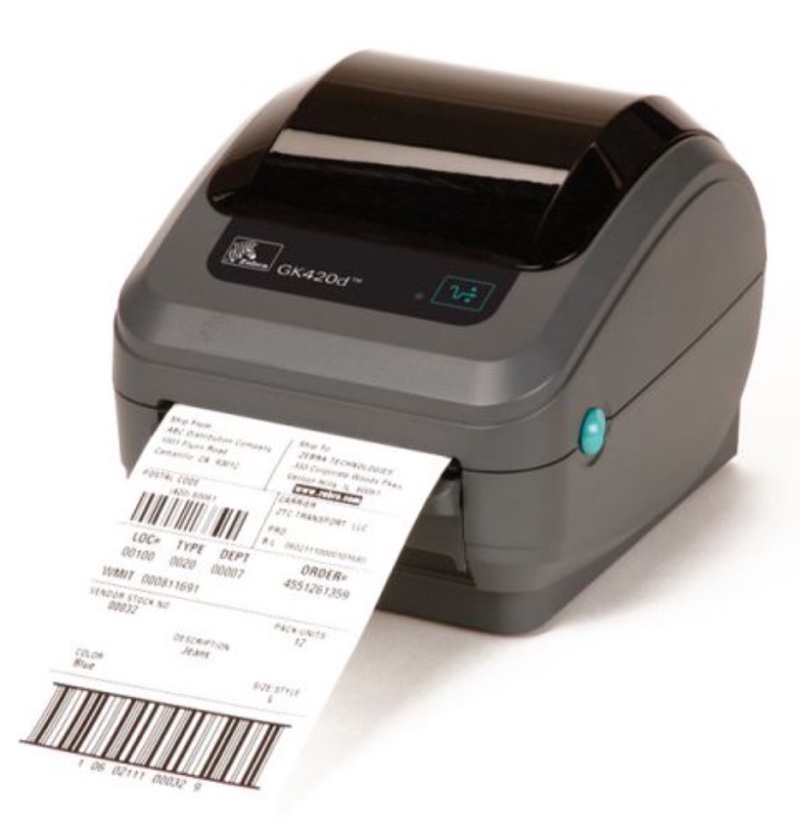

Zebra GK420d Direct Thermal Label Printer Ethernet USB (Now ZD421)

Description

The Zebra enhanced GK420d direct thermal printer offers the best value in a basic desktop printer, featuring a fast 5 inches per second print speed to meet your low- to medium-volume printing requirements.  The GK420d boasts the smallest footprint in a 4-inch desktop printer, and supports a variety of applications and industries.



Features:

• Print speed: up to 5″ (127 mm) per second
• 8dot/mm (203 dpi)
• Print width 4.09″ (104 mm) Print length 39″ (991 mm)
• Direct thermal print method (USB , Ethernet (10/100) (R2.0) Interface)
• EPL and ZPL programming languages
• OpenACCESS design for easy media loading
• Smallest footprint in 4-inch thermal printer
• Dual-wall reinforced plastic construction
• 32 bit RISC processor
• Replacement for GK42-202240-000)
• Recommended Labels Per Day 1,600



Zebra’s G-Series printers support many applications, including:

• Retail price marking, gift registry, and coupon and receipt printing
• Retail pharmacy prescription labeling
• Healthcare specimen labeling and patient tracking
• Light-industrial work-inprocess, product and shipping labeling
• Security applications: visitor ID, evidence tracking, parking passes
• Travel/Hospitality: boarding passes, bag tags, ski lift tickets
• Warranty:  Manufacture 1 Year Limited covering parts and labor, 6 Month Print Head Warranty



Media:

• Maximum label and liner width: 4.25″ (108 mm)
• Minimum label and liner width: 0.75″ (19 mm)
• Maximum label and liner length: 0.38″ (9.7 mm) to 39″ (991 mm)
• Maximum roll diameter: 5″ (127 mm)
• Core diameter: 0.5″ (12.7 mm), 1.0″ (25.4 mm), 1.5″ (37.1 mm)
• Media thickness: 0.003″ (0.08 mm) to 0.0075″ (0.20 mm)
• Media types: black bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock

Operating Characteristics:

• Operating temperature DT: Operating temperature: 40° F (5° C) to 105° F (41° C)
• Direct thermal Storage temperatures: -40° F (-40° C) to 140° F (60° C)
• Operating humidity: 10-90% non-condensing
• Storage humidity: 5-95% non-condensing
• Electrical: Auto-detectable (PFC Compliant) 100-240 VAC, 50-60 Hz



Physical Characteristics:

• Width: 6.75″ (171 mm)
• Height: 6″ (152 mm)
• Depth: 8.25″ (209 mm)
• Weight: 3.1 lbs (1.4 kg)
• Shipping weight: 7.1 lbs (3.2 kg)



Programming Languages:

• Core programming languages: EPL2, Line Mode, ZPL I/ZPL II



Barcode Symbologies:

• Linear Codabar
• Code 11
• Code 128
• Code 128 with subsets A/B/C
• Code 39
• Code 93
• EAN-13
• EAN-14
• EAN-8
• EAN-8 and EAN-13 with 2 or 5 digit extensions
• German Post Code
• Industrial 2-of-5
• Interleaved 2-of-5
• Japanese Postnet
• Logmars
• MSI
• MSI-3
• Plessey
• Postnet
• RSS (reduced space symbology)
• Standard 2-of-5
• UCC/EAN-128
• UPC and EAN 2 or 5 digit extensions
• UPC-A
• UPC-A and UPC-E with 2 or 5 digit extensions
• UPC-A and UPC-E with EAN 2 or 5 digit extensions
• UPC-E
• 2-dimensional Aztec
• Codablock
• Code 49
• Data Matrix
• MacroPDF417
• MaxiCode
• MicroPDF417
• PDF417
• QR Code
• RSS / GS1 DataBar family (12 barcodes)



Fonts and Graphics:

• 16 resident expandable ZPL II bitmap fonts
• One resident scalable ZPL font
• Five resident expandable EPL2 bitmap fonts
• Supports user-defined fonts and graphics – including customer logos
